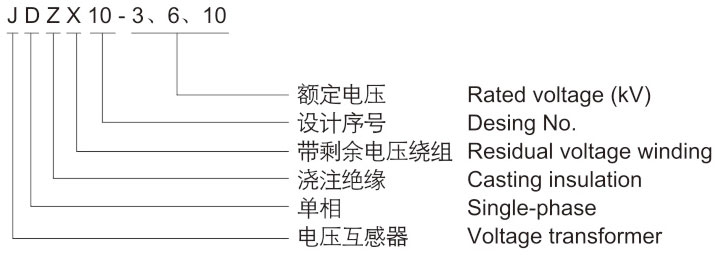

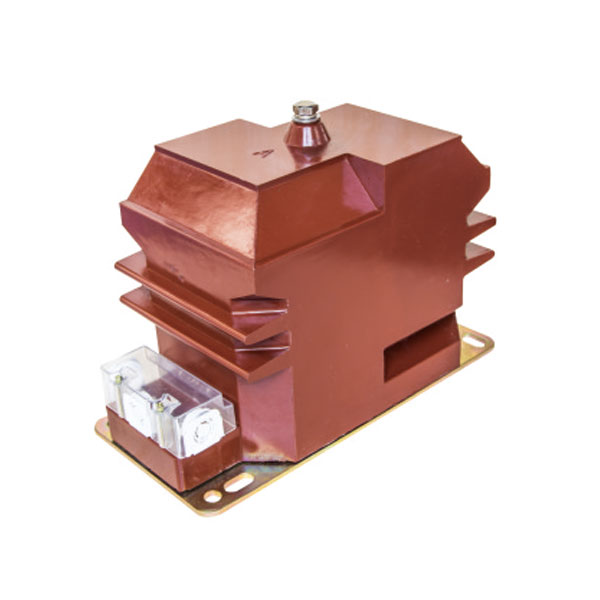

型号含义 Type description
技术参数Technical data
额定电压比 Rated voltage ration (v) | 额定二次输出Rated secondary output(VA) | 极限输出Max. output (VA) | 额定绝缘水平Rated insulation level (kV) | 备注 Notes | ||||||
0.2 | 0.5 | 1级 | 3级 | 6P | ||||||
3000 √3 | 100 √3 | 100 √3 |
15 |
30 |
60 |
150 |
50 |
200 | 3.6/25/40 |
等同“REL” Same“REL” |
6000 100 100 √3 √3 √3 | 7.2/32/60 | |||||||||
10000 100 100 √3 √3 √3 | 12/42/75 | |||||||||
外形及安装尺寸0verall dimension drawing
接线图Wiring diagram
